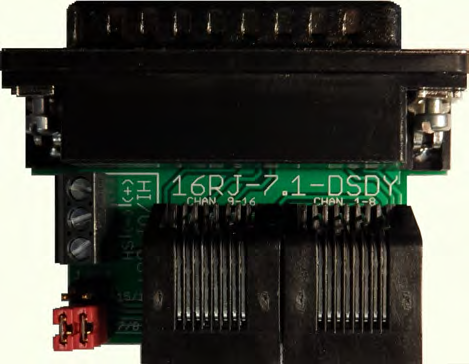

Darco/Odyssey Products Model 16RJ-7.1-DSDY Dual RJ45-to-DB25 converter with 7.1 surround routing, and HI/VI breakout terminals
This board is installed at the cinema processor, and performs the following functions:
• It routes the digital AES audio from the industry-standard RJ45 connectors, to the “4XAES / DMA8 / Dolby”
DB25 pin configuration used by many cinema processors.
• It physically routes the “7.1” surrounds (AES channels 11/12) to channels 7/8 going into the cinema
processor.
• It provides screw-terminal breakouts for the HI/VI channels, jumper-selectable for channels 7/8 or 15/16.
(NOTE: The output is AES digital audio, NOT analog.)
