Odyssey Products Model 16RJ-7.1-DSDY-RJ

Dual RJ45-to-DB25 converter with 7.1 surround routing, and HI/VI breakout RJ45 connector.
This board is installed at the cinema processor, and performs the following functions:

• It routes the digital AES audio from the industry-standard RJ45 connectors, to the “4XAES / DMA8 / Dolby” DB25 pin configuration used by many cinema processors.
• It physically routes the “7.1” surrounds (AES channels 11/12) to channels 7/8 going into the cinema processor.
• It provides a single RJ45 output for the HI/VI channels, jumper-selectable for channels 7/8 or 15/16. (NOTE: The output is AES digital audio, NOT analog.)

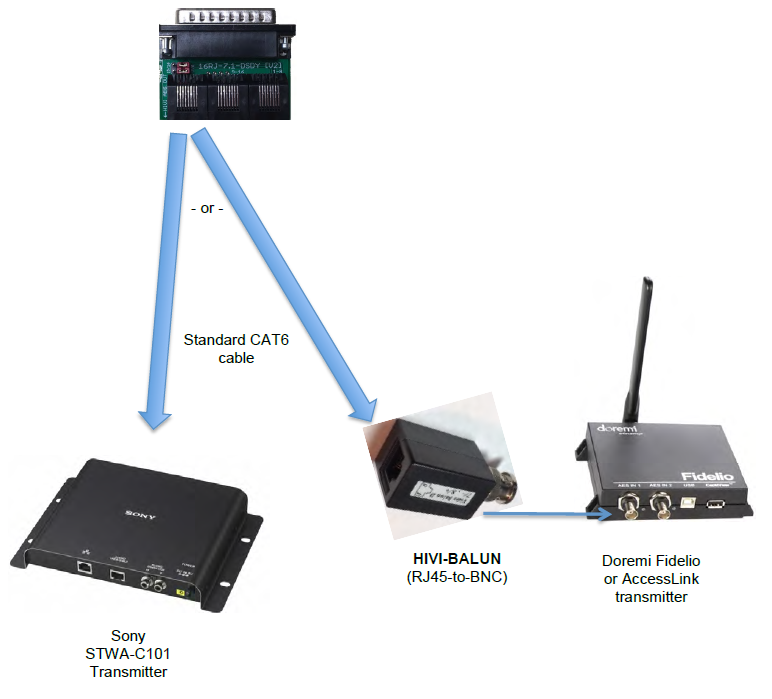

This board is optimized for routing AES HI/VI to Sony transmitters, and to Doremi transmitters equipped with RJ45 input Balanced-to-unbalanced “Balun” adapters (such as the Odyssey model HIVI-BALUN).


This board is pin compatible with the following processors with the “4XAES”, “DMA8”, or “Dolby” pin-configuration:

* Dolby CP750
* Dolby CP650 (equipped with Odyssey “AES” -series digital input boards)
* USL JSD-80D
* USL JSD-60D
* QSC DCP-100, -200, -300 (Input 1-8 connector)
* Datasat AP20 (Input 1-8 connector)
* Enpar Audio DCP800D
* D/A converters, such as the DMA8, DMA8Plus, ECI-60, DAX-602, and Gefen Pro II scaler.
* Others.
