Darco/Odyssey Products Model 16RJ-7.1-DSDY-TRM - Dual RJ45-to-DB25 converter with 7.1 surround routing
Related Articles
Darco/Odyssey Products Model 16RJ-7.1-DSDY-RJ - Dual RJ45-to-DB25 converter with 7.1 surround routing
Odyssey Products Model 16RJ-7.1-DSDY-RJ Dual RJ45-to-DB25 converter with 7.1 surround routing, and HI/VI breakout RJ45 connector. This board is installed at the cinema processor, and performs the following functions: • It routes the digital AES audio ...
Darco/Odyssey Products Model 16RJ-7.1-DSDY-RCA - Dual RJ45-to-DB25 converter with 7.1 surround routing
Odyssey Products Model 16RJ-7.1-DSDY-RCA Dual RJ45-to-DB25 converter with 7.1 surround routing, and HI/VI breakout RCA connector. This board is installed at the cinema processor, and performs the following functions: • It routes the digital AES audio ...

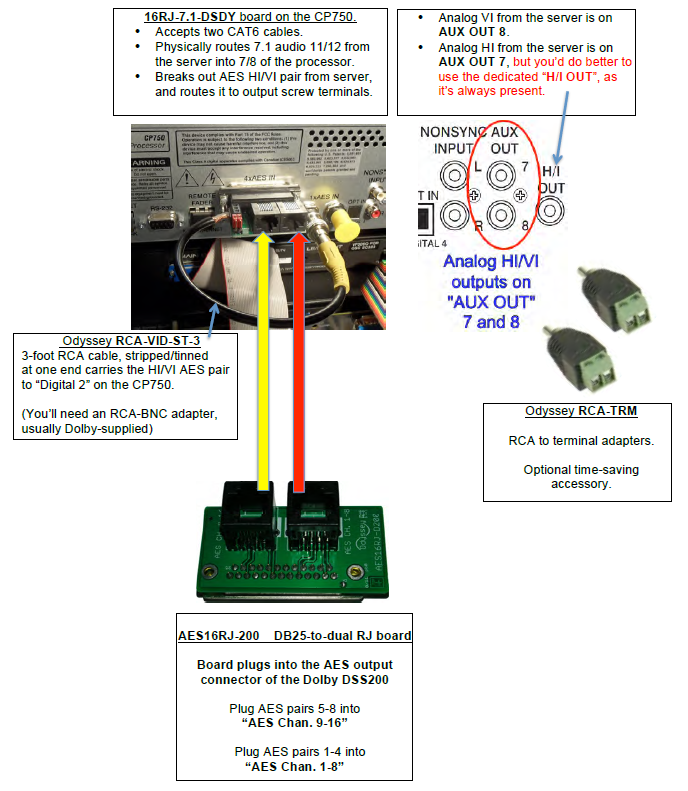

Darco/Odyssey Products Model 16RJ-7.1-DSDY Dual RJ45-to-DB25 converter with 7.1 surround routing, and HI/VI breakout terminals
This board is installed at the cinema processor, and performs the following functions: • It routes the digital AES audio from the industry-standard RJ45 connectors, to the “4XAES / DMA8 / Dolby” DB25 pin configuration used by many cinema processors. ...
Darco/Odyssey Products Model 16RJ-7.1-DSDY-TRM - Dual RJ45-to-DB25 converter with 7.1 surround routing, and HI/VI breakout TRM connector
Click here for the manual for the above product This board is pin compatible with the following processors with the “4XAES”, “DMA8”, or “Dolby” D-sub pin-configuration: * Dolby CP750 * Dolby CP650 (equipped with Odyssey “AES” -series digital input ...
Darco/Odyssey Products Model IN-8X2RJ-DCP100 Digital Audio Input Adapter board for the DCP100 processor
Description: The IN-8X2RJ-DCP100 board offers two RJ connectors for the dual- DB25 input connectors on the QSC DCP 100 processor. The input connector on this board is pin-compatible with modern Integrated Media Blocks that use dual RJ connectors for ...
