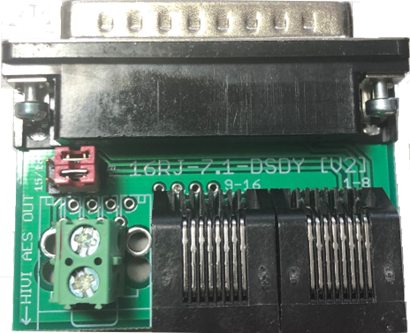

Darco/Odyssey Products Model 16RJ-7.1-DSDY-TRM - Dual RJ45-to-DB25 converter with 7.1 surround routing, and HI/VI breakout TRM connector
This board is pin compatible with the following processors with the “4XAES”, “DMA8”, or “Dolby” D-sub pin-configuration:
* Dolby CP750
* Dolby CP650 (equipped with Odyssey “AES” -series digital input boards)
* USL JSD-80D
* USL JSD-60D
* QSC DCP-100, -200, -300 (Input 1-8 connector)
* Datasat AP20 (Input 1-8 connector)
* Enpar Audio DCP800D
* D/A converters, such as the DMA8, DMA8Plus, ECI-60, DAX-602, and Gefen Pro II scaler.
* Others.
