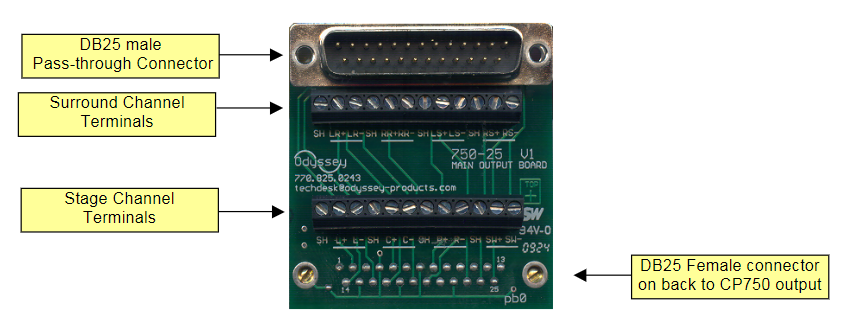

Darco/Odyssey Products Model 750-25-V1 Output Breakout Board for the CP-750
Also can be used with:
• USL JSD-60 processor
• Datasat AP-20 (8-channels)
• Sony DFP-D3000
