Darco/Odyssey Products Model ODY-D2A-R2 Analog to Digital Audio Converter

Darco/Odyssey Products Model ODY-D2A-R2 Analog to Digital Audio Converter



Introduction:
This Digital-To-Analog Audio Converter is designed for either home or professional audio
applications. It converts Coaxial or Toslink digital audio signals to analog Left/Right audio,
available via standard RCA jacks.
The input supports sampling rates at 32, 44.1, 48, and 96 KHz.

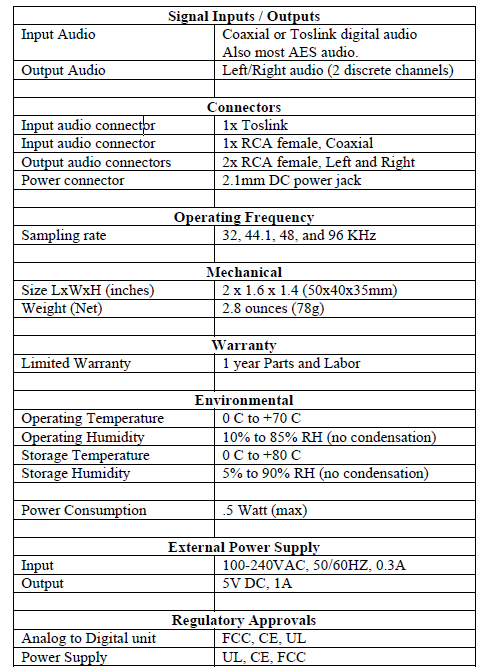

Package Contents:
• Main Digital to Analog unit.
• 5V/DC Power Supply.
• User Manual.
• (1) set of wall anchors, and (1) set of self-drilling machine screws for mounting.
Connection and Operation:
Before installation, make sure all devices to be connected are powered OFF.
• Mount the D2A box in a convenient location, either with the supplied self-drilling sheet metal
screws, or the wall-anchor sets (through the integral screw mounting tabs**).
• Connect the output cabling to the analog output RCA’s.
(White for Left channel, Red for Right).
• Connect a digital S/PDIF (or AES) source to the “INPUT” RCA connector (yellow).
• Plug the DC connector from the External power supply into the DC/5V jack.
• Plug in the External power supply. The red “Power” LED should light.


NOTE: These units ship with attached ground wires.
(Colors may vary: brown, green, gray, black, or tan)
In case of ground-loop hum, attach the wire to a ground in the
sound rack: Either “audio ground”, “analog ground”, or “chassis
ground”.
